Name: 16-in-1 Thunderbolt 3 Docking Station with 40Gbps Speed DP1.4 Output and 65W PD Charging
Brand: Dongguan Hongxinda Electronic Technology Co., Ltd.
SKU: DC009
Price: 80 USD
Availability: InStock

Home > Products > USB C Hub >

16-in-1 Thunderbolt 3 Docking Station with 40Gbps Speed DP1.4 Output and 65W PD Charging

Place of Origin:

CHINA

Brand Name:

SUBOSEN

Certification:

CE,FCC

Model Number:

DC009

Document:

Product Brochure PDF

Request A Quote

16-in-1 Thunderbolt 3 Docking Station with 40Gbps Speed DP1.4 Output and 65W PD Charging

Product Details

Aluminum:

Full Aircraft-grade Aluminum Alloy

Dimensions:

200mm X 150mm X 35mm

Form Factor:

Portable Or Desktop

Operating System Support:

Windows, MacOS, Linux

Sample Time:

7 Days

Color:

Space Gray

Products Status:

Stock

Compatible Memory Cards:

MicroSD (TransFlash), SD

Connector Type:

USB C

Supported Systems:

Windows, Mac OS

Shielding:

Non-Shielded

Custom Design:

Available

Data Transfer Speed:

Up To 5Gbps

Cable Type:

USB-C Hub With Ethernet

Usb Type:

3.0/3.1/2.0

Operating Temperature:

0C To 45C

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Delivery Time

35days

Payment Terms

T/T

Supply Ability

300/DAYS/25

4 Bay Aircraft-grade Aluminum Alloy RAID HDD Enclosure with Hardware RAID 6 Modes and Dual 10Gbps Type-C DAS Storage Array

Get Best Price

Video

13-in-1 USB C Hub with 10Gbps Ultra-Fast Data Transfer and 65W Dedicated DC Power

Get Best Price

Durable USB Type C Adapter Compatible with Multiple Devices Supporting Fast Data Transfer and Charging

Get Best Price

Versatile USB C Hub Equipped with HDMI USB 3.0 Ethernet and SD Card Reader Supporting Multiple Device Connections

Get Best Price

+8613711965307

lujunfeng@subosen.com

Contact Now

Product Description

Product Overview

Dolovo 16-in-1 Thunderbolt 3 docking station is an all-in-one expansion hub designed for Thunderbolt 3 laptops. It integrates high-speed data transmission, multi-display output, power delivery, wired network, audio, storage card reading and multi-port USB expansion in one compact aluminum housing. Eliminate messy cables and turn your thin notebook into a full-function workstation for office, design, video editing and daily productivity.

Core Highlights

1. Full-Featured Thunderbolt 3 40Gbps Bandwidth

Upstream TB3 Port: 40Gbps ultra-high speed, supports 65W pass-through power charging for your laptop while working.
Downstream TB3 Port: Extend another Thunderbolt 3 device, max 40Gbps data transfer for external SSDs, docks and accessories.

2. DP 1.4 High Resolution Display Output

Equipped with DP 1.4 port, supports ultra-high-definition video output for graphic designers, video producers and multi-screen office users, delivering smooth, high-color-accuracy display performance.

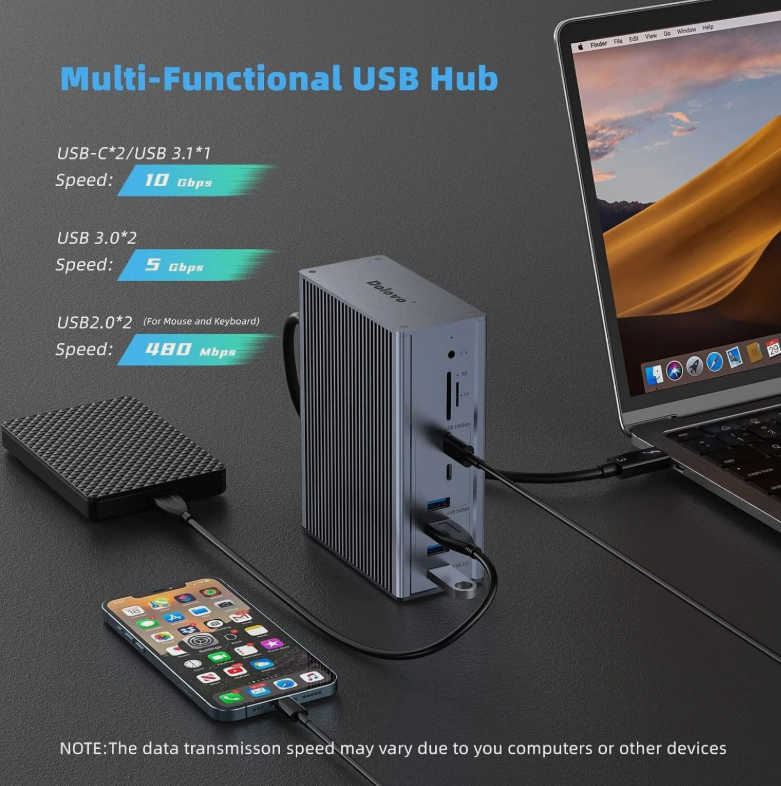

3. Rich Multi-Speed USB Expansion Ports

1× USB-C 10Gbps: Specially optimized for M.2 enclosures, HDDs and flash drives to transfer large files fast.
2× USB 3.0 5Gbps: Connect mouse, keyboard, U disk, external hard drives and daily peripherals.
2× USB 2.0: For low-speed devices like printers, wireless receivers without occupying high-speed bandwidth.

4. SD + TF Dual Card Reader

Built-in SD & TF card slots, perfect for photographers, vloggers and creators to quickly import photos/videos from cameras, drones and memory cards without extra adapters.

5. Complete Audio & Audio Output

3.5mm Audio/Mic combo jack: Plug in headsets, microphones for meetings, video calls and music playback.
Optical Out port: Connect soundbars, professional speakers for lossless high-fidelity audio.

6. Stable Gigabit Ethernet & Independent Power Supply

1000Mbps Gigabit RJ45 LAN port: Stable wired network, no lag for live streaming, large file downloads and online meetings.
DC-IN 20V/3.25A power input: Independent power supply ensures all ports run stably even under full load, no power shortage issues for multi-device connection.

7. Premium Aluminum Alloy Housing

Whole metal heat-dissipation shell, excellent heat conduction to avoid overheating during long-time heavy-duty use. Compact vertical design saves desktop space, scratch-resistant and stylish for office & home desk.

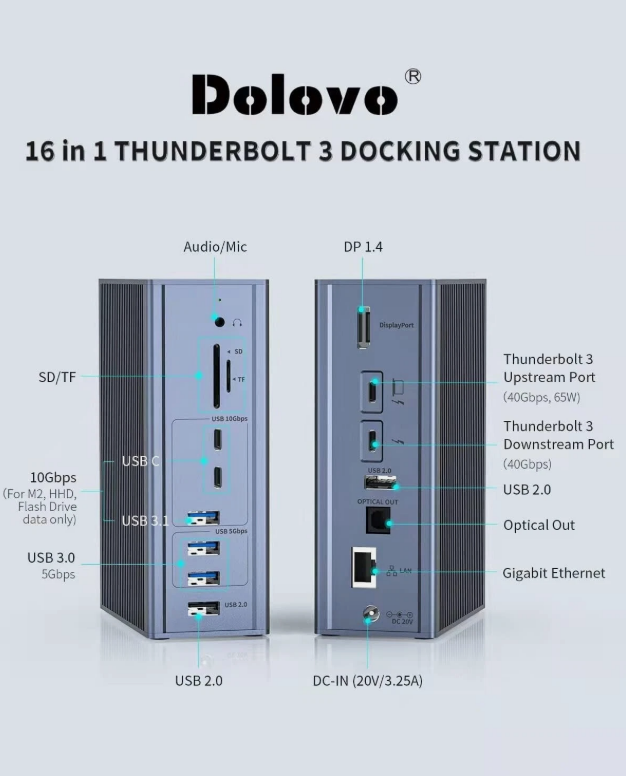

Full Port Specification (16 Ports Total)

Left Side Panel

3.5mm Audio/Mic Jack
SD Card Slot
TF Card Slot
USB-C 10Gbps
USB 3.1 (USB3.0 5Gbps)
USB 3.0 5Gbps
USB 2.0

Right Side Panel

DP 1.4 Video Port
Thunderbolt 3 Upstream (40Gbps, 65W PD)
Thunderbolt 3 Downstream (40Gbps)
USB 2.0
Optical Audio Out
Gigabit Ethernet RJ45
DC-IN 20V/3.25A Power Port

Wide Compatibility

Fully compatible with all laptops equipped with Thunderbolt 3 interface, including MacBook Pro, MacBook Air, Windows Thunderbolt 3 notebooks (Dell, HP, Lenovo, ASUS, MSI etc.). Ideal for graphic design, video editing, remote office, live streaming, photography and student study.

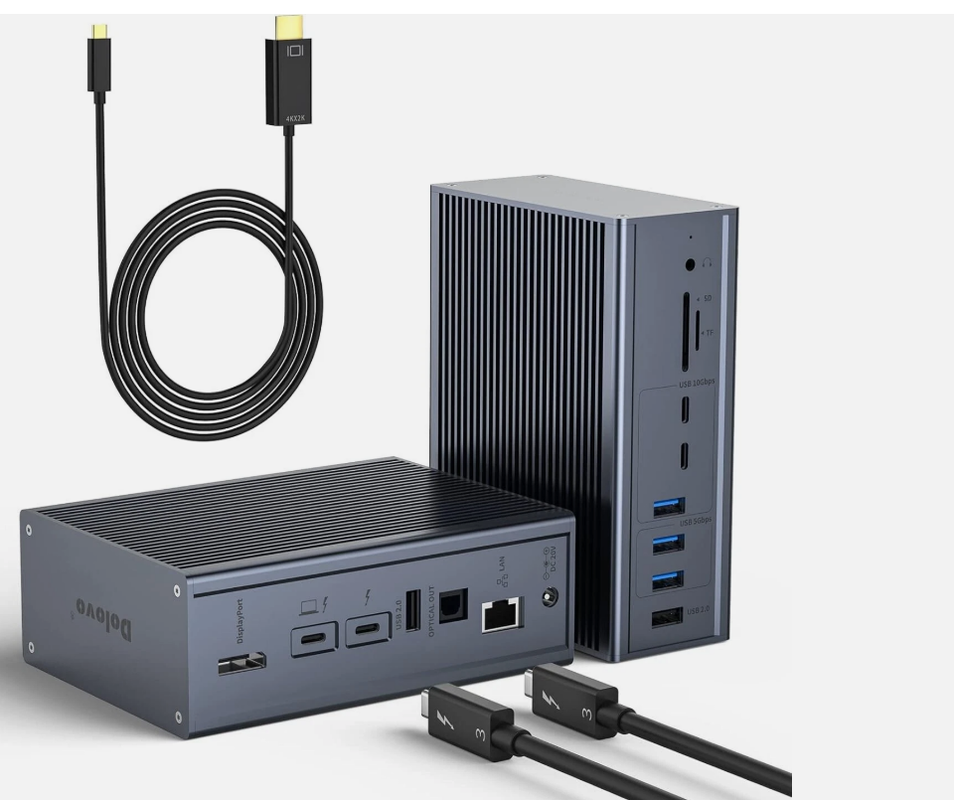

Package Includes

1 × Dolovo 16-in-1 Thunderbolt 3 Docking Station

1 × Thunderbolt 3 Cable

1 × DC Power Adapter

1 × User Manual

Warm Tips

This docking station only works with devices with Thunderbolt 3 ports, not compatible with ordinary USB-C without TB3 protocol.
Use the original matched DC power adapter to ensure full power supply for all connected devices.
The USB-C 10Gbps port is recommended for high-speed storage devices (HDD, M.2 SSD) to maximize transfer efficiency.

After-Sales Support

All Dolovo docking stations pass strict factory quality inspection before shipment. If you receive damaged, defective or mismatched products, please contact our customer service immediately. We provide fast replacement, refund and professional technical support to guarantee your satisfactory shopping experience.
