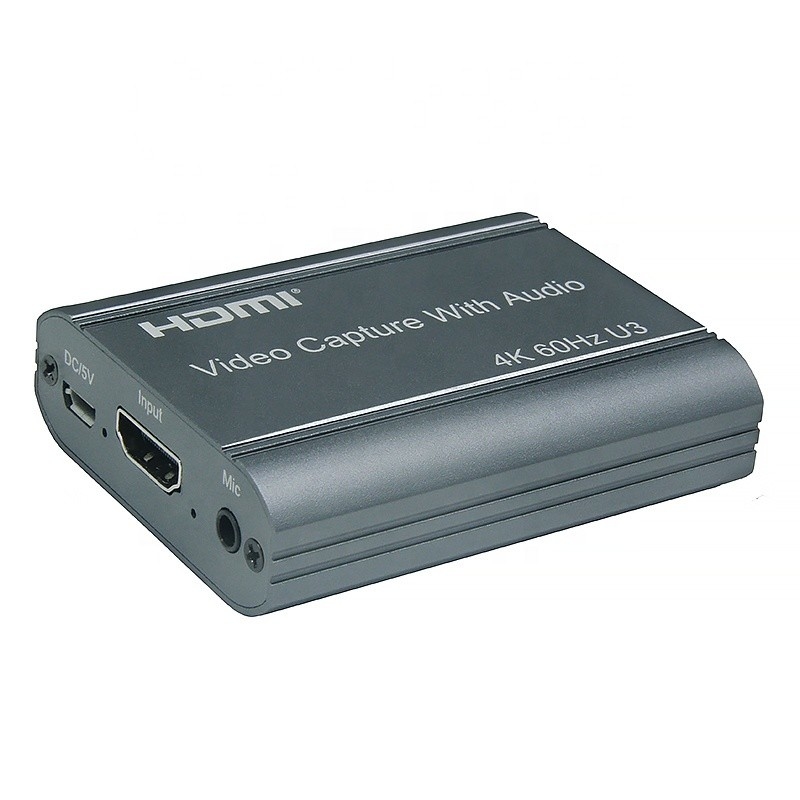

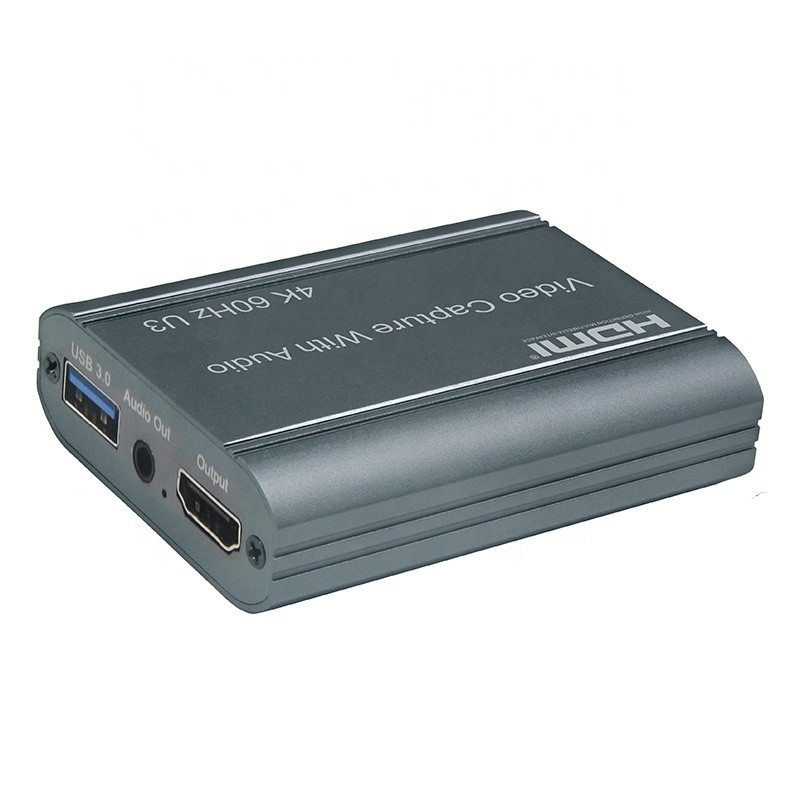

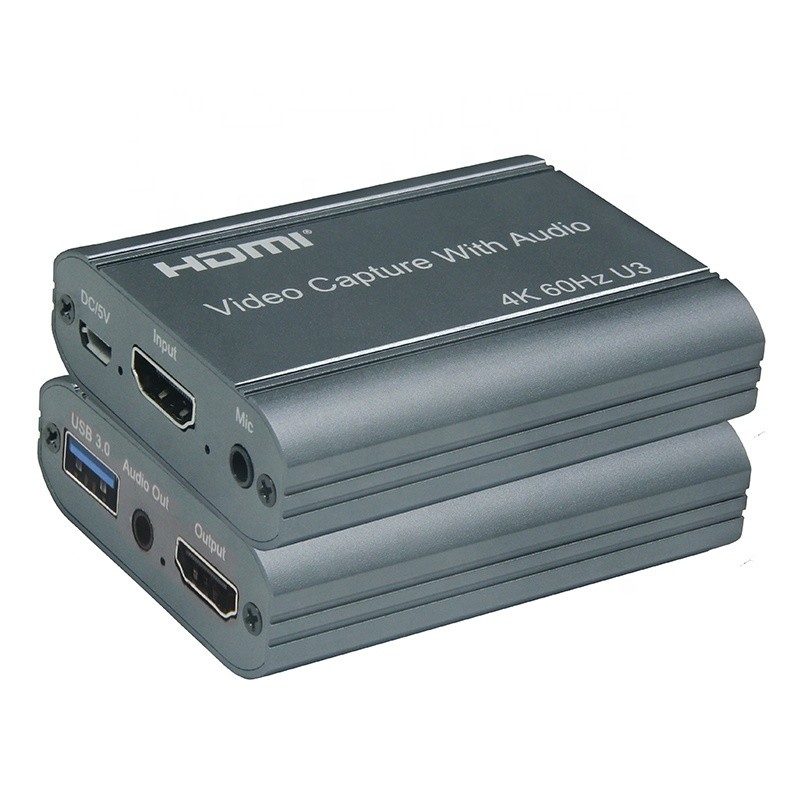

Professional 4K 60Hz HDMI To USB3.0 Video Capture Card With Audio Output And USB 3.0

4K 60Hz Video Capture Card

USB3.0 Video Capture Card

Brand Name:

Stone

Document:

Product Brochure PDF

Request A Quote

Professional 4K 60Hz HDMI To USB3.0 Video Capture Card With Audio Output And USB 3.0

Product Details

Private Mold:

Input Interface:

HDMI, Mic 3.5MM Audio

Output Interface:

USB, 3.5MM Audio, USB 3.0

Support Systerm:

OBS, OS X, Windows

Resolution:

1920x1080

Capture Format:

JPEG, Picture: DCF, JPEG, DPOF Video:AVI, Picture: JPEG Video: AVI Audio:WAV, MP4, Picture: JPEG Video: AVI

Power Supply:

5V DC/AC

Product Name:

4K 60Hz HDMI USB 3.0 Capture Card With Audio

Certifications:

CE ROHS

Input:

HDMI+Mic 3.5MM Audio

Output:

USB 3.0+3.5MM Audio

Material:

Metal Shell

Color:

Gray

Package:

Box

Function:

Video Recording Live Streaming

Warranty:

12 Months

Port:

Shenzhen Guangzhou

Highlight:

4K 60Hz Video Capture Card

USB3.0 Video Capture Card

Payment & Shipping Terms

Minimum Order Quantity

500 Pcs

Price

$22.60/pieces 2-99 pieces

Packaging Details

color boxes

Supply Ability

100000 Piece/Pieces per Month

Versatile 8-In-1 USB Type C Hub Multiport Adapter for Multi-Tasking and Data Transfer

Get Best Price

Video

Usb C 6 In 1 Multiport Adapter To HDMI Splitter USB-A 3.1 Type-C Data Port 100W PD SD Card Reader

Get Best Price

Silver 10-in-1 USB-C Hub with HDMI USB 3.0 Ethernet 3.5mm Audio Jack for PC and laptop

Get Best Price

7 In 1 Dual Type C Hub Usb C Docking Station Supports 4K HDMI Card Reader For Mackbook Pro

Get Best Price

+86 13076952591

ivy@subosen.com

Contact Now

Product Description

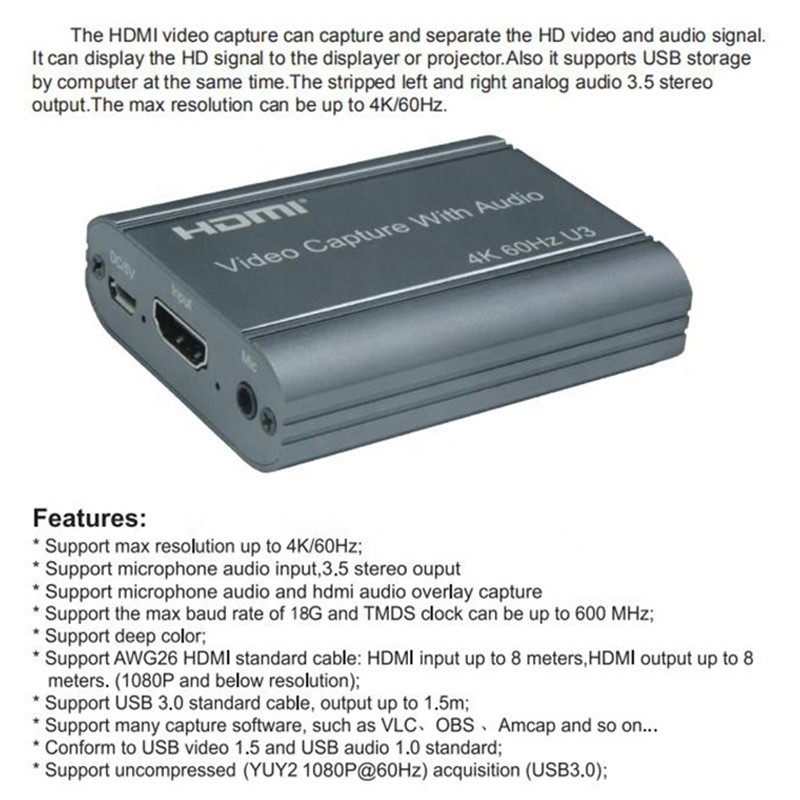

4K 60fps HDMI Video Capture Card HD 4K@60Hz 1080P HDMI To USB3.0 USB 3.0 Live Stream Video Capture Card Recorder With Audio

Features:
Support max resolution up to 4K/60Hz:
Support microphone audio input,3.5 stereo ouput
Support microphone audio and hdmi audio overlay capture
Support the max baud rate of 18G and TMDS clock can be up to 600 MHz;
Support deep color;
Support AWG26 HDMI standard cable: HDMI input up to 8 meters,HDMI output up to 8meters. (1080P and below resolution);
Support USB 3.0 standard cable, output up to 1.5M:
Support many capture software, such as VLC. OBS. Amcap and so on...
Conform to USB Video 1.5 and USB Audio 1.0 standard;
Support unc (YUY2 1080P@60Hz) acquisition (USB3.0);

Specifications:
HDM resolution....................................................................................Up to 4K/60Hz
Support color format............................................................................Deep color
Support audio format............................................................................LPCM
Max bandwidth.....................................................................................600MHz
Max baud rate......................................................................................18Gbps
Input cable distance..............(1080p resolution)≤8m AWG26 HDMI standard cable
Output cable distance..............(1080p resolution)≤8m AWG26 HDMI standard cable;
≤1.5M USB 3.0 Standard Cable
Max Working Currert............................................................................0.7A/5VDC
Operating temperature range...............................................................(-10 to +55 C)
Dimension (Lx Wx H)..........................................................................70x56x19 (mm)
Weight.................................................................................................56g
